Grommet Slings

TYPE 51-2E-2E GROMMET SLINGS WITH
DOUBLED ROPE LEGS AND SEIZED-LOOP
ENDS STRAND-LAID CONSTRUCTION

Diameter of Grommet
Inches		 Min
Length
(SL) of
Sling
ft-in.		 Rated Capacities**
in Tons
EIPS
Choker
Hitch		 Rated Capacities**
in Tons
EIPS
Leg Vertical		 Rated Capacities**
in Tons
EIPS
Basket Hitch
When Used
60 Degree Angle		 Rated Capacities**
in Tons
EIPS
Basket Hitch
When Used
45 Degree Angle		 Rated Capacities**
in Tons
EIPS
Basket Hitch
When Used
30 Degree Angle		 Loops

W
Inches		 Loops

L
Inches
3/8 1-9 1.6 2.1 3.6 3.0 2.1 4 8
1/2 2-0 2.8 3.7 6.4 5.2 3.7 5 10
5/8 2-9 4.3 5.7 9.9 8.1 5.7 7 14
3/4 3-3 6.2 8.2 14 12 8.2 8 16
7/8 3-9 8.3 11 19 16 11 9 18
1 4-0 11 14 24 20 14 10 20


Larger sizes available on request.

Rated capacities of basket hitches are based on minimum diameter of curvature at point of load contact of 5 times the rope diameter.

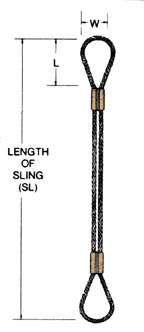

Length of sling (SL) is measured as indicated on sketch.

Rated capacities of choker hitches apply when the angle of choke is greater than 120 degrees.



TYPE 52-2E-2E FLEXIBLE GROMMET SLINGS WITH DOUBLED-ROPE LEGS AND SEIZED-LOOP ENDS CABLE-LAID CONSTRUCTION
Diameter of Grommet
Inches		 Diam. of
Rope
Used
Inches		 Construction
of
Grommet		 Min.
Length
(SL)
of Sling
ft-in.		 Rated Capacities**
in Tons
Purple Plus
Choker Hitch		 Rated Capacities**
in Tons
Purple Plus
Leg Vertical		 Rated Capacities**
in Tons
Purple Plus
Basket Hitch
When Used
60 Degree Angle		 Rated Capacities**
in Tons
Purple Plus
Basket Hitch
When Used
45 Degree Angle		 Rated Capacities**
in Tons
Purple Plus
Basket Hitch
When Used
30 Degree Angle		 Loops

W
Inches		 Loops

L
Inches
3/8 1/8 7 x 7 x 7 1-9 1.2 1.6 2.8 2.3 1.6 4 8
9/16 3/16 7 x 7 x 7 2-3 2.6 3.5 6.1 4.9 3.5 5 10
5/8 7/32 7 x 7 x 7 2-9 3.4 4.5 7.8 6.4 4.5 6 14
3/4 1/4 7 x 6 x 19 3-3 4.2 5.6 9.7 7.9 5.6 7 16
15/16 5/16 7 x 6 x 19 3-9 6.5 8.7 15 12 8.7 8 18


Larger sizes available on request.
Rated capacities of basket hitches are based on minimum diameter of curvature at point of load contact of 5 times the rope diameter.
Length of sling (SL) is measured as indicated on sketch.
Rated capacities of choker hitches apply when the angle of choke is greater than 120 degrees.
