"Gold
Nose™"
Dimensions
 |
Available
upon request at additional cost
- Proof
loading
- ABS,
DNV, Lloyd's Certification
- Radiograph
inspection
|
Available in Drop
Forged and Cast Alloy
GOLD
NOSE SOCKETS

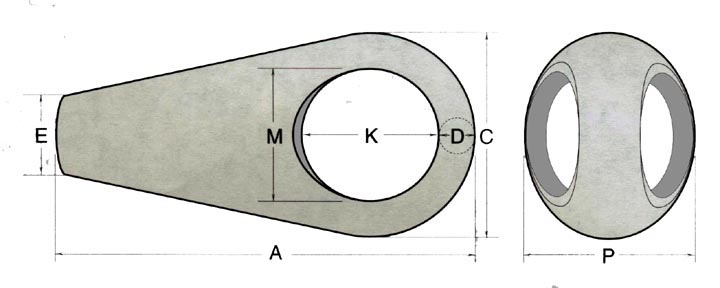

Dimensions in Inches |
Wire Rope
Diameter |
A |
C |
D |
E |
K |
M |
P |
| 1-1/4-1-3/8 |
9-11/16 |
4-13/16 |
1-1/2 |
1-7/8 |
3-1/4 |
3 |
3-13/16 |
| 1-1/2-1/5/8 |
12 |
6 |
19/32 |
2-1/4 |
4-1/16 |
3-5/8 |
4-13/16 |
| 1-3/4-1-7/8 |
14 |
7 |
1-7/8 |
2-5/8 |
4-3/4 |
4-3/8 |
5-1/2 |
| 2-2-1/8 |
15-3/8 |
7-15/16 |
2-1/8 |
3 |
5-1/4 |
4-3/4 |
6-1/4 |
| 2-1/4-2/38 |
17-1/4 |
8-11/16 |
2-7/16 |
3-3/16 |
5-3/4 |
5-1/4 |
7-1/4 |
| 2-1/2-2-5/8 |
18 |
10-3/8 |
2-11/16 |
3-13/16 |
6-1/2 |
5-7/8 |
8-9/16 |
| 2-3/4-2-7/8 |
21-1/4 |
10-3/4 |
2-15/16 |
4-1/8 |
7 |
6-7/16 |
8-3/4 |
| 3-3-1/8 |
23 |
11-5/8 |
3 |
4-1/2 |
7-5/8 |
6-7/8 |
9-9/16 |
| 3-1/4-3-3/8 |
24-5/8 |
12-9/16 |
3-1/4 |
4-3/4 |
8-1/2 |
7-5/8 |
10-1/4 |
| 3-1/2-3-5/8 |
26-3/8 |
13-3/8 |
3-5/8 |
5 |
8-5/8 |
7-15/16 |
10-5/8 |
| 3-3/4-3-7/8 |
27-1/2 |
14 |
3-7/8 |
5-1/4 |
9-1/4 |
8-7/16 |
11-7/16 |
| 4-4-1/4 |
31-5/8 |
16-1/4 |
4-3/8 |
6 |
10-5/8 |
9-1/2 |
12-1/2 |
All subject
to change without notice.
WARNING:
To install sockets on wire rope follow socketing procedures for
zinc poured socketing as outlined by The American Iron and Steel
Institute. Follow manufacturing recommendations for resin socketing.
