Equalizing Thimbles

Double
Groove		 Single
Groove



  • Legs of bridle slings may be adjusted in length, using the equalizing thimble.
  • For use in lifting unbalanced loads.

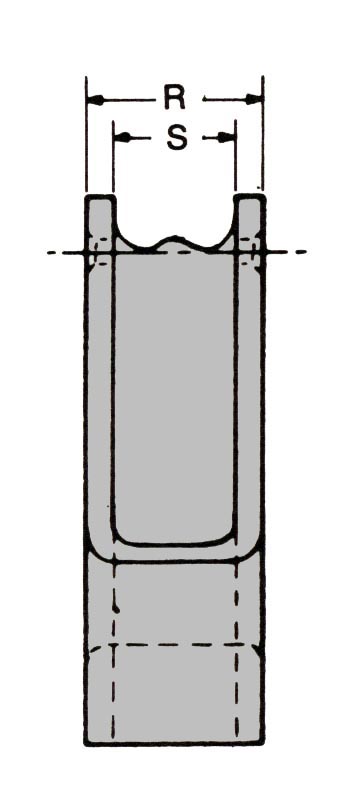

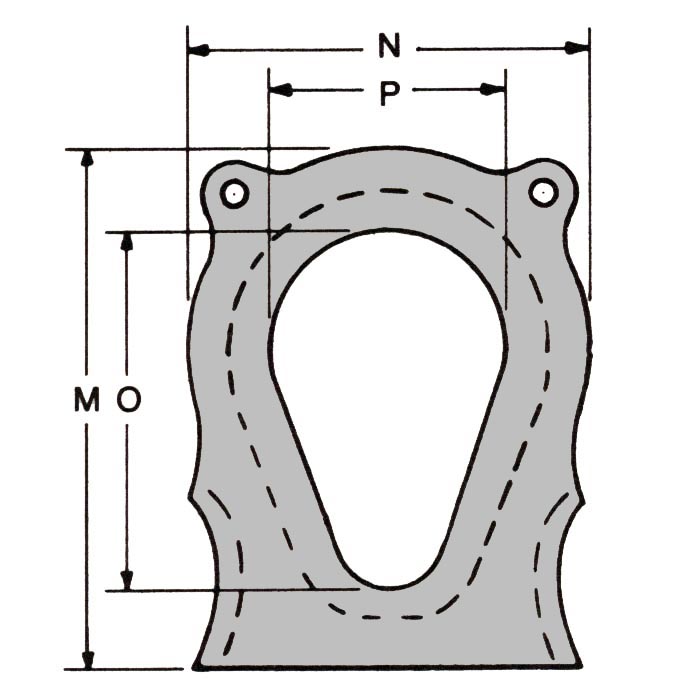

SINGLE GROOVE

Dimensions in inches

CAST 1035 Steel

Wire Rope
Size Range		 M N O P R S Weight
Pounds
3/8-7/16 6-7/16 4-5/8 4-1/2 3 7/8 1/2 3.0
1/2-9/16 8-1/2 6-3/16 6 4 1-1/8 5/8 6.3
5/8-3/4 9-15/16 7 7 4-1/2 1-7/16 15/16 9.8
7/8-1 10-3/4 8-3/4 7-1/8 5 1-13/16 1-3/16 15.6
1-1/8-1-1/4 14-3/8 10-7/8 10 6-1/2 2-3/16 1-7/16 28.0
1-3/8-1-1/2 15-7/8 11-3/4 11 7-1/2 2-9/16 1-11/16 39.0
1-5/8-1-3/4 20-13/16 14-1/4 15 9 2-15/16 1-15/16 65.0

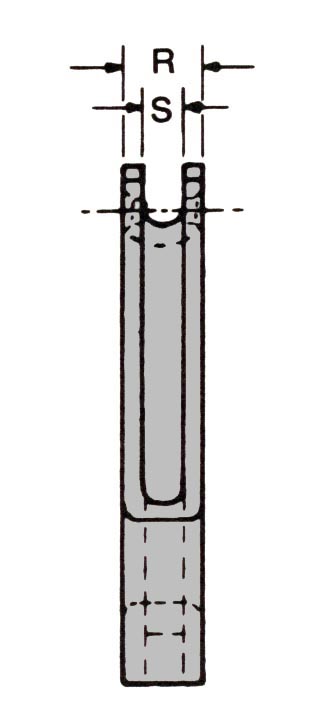

DOUBLE GROOVE

CAST 1035 STEEL

Wire Rope
Size Range		 M N O P R S Weight
Pounds
5/8-3/4 11-1/4 8 8-1/4 5-1/2 2-3/8 1-3/4 21.0
7/8-1 12-3/4 8-1/2 9 6 2-7/8 2-1/4 28.0
1-1/8-1-1/4 16 12-1/8 11-1/2 7-1/2 3-1/4 2-5/8 45.0

Larger sizes upon application.
Cast alloy available upon request.
