Safety
Matched Components
and Specifications

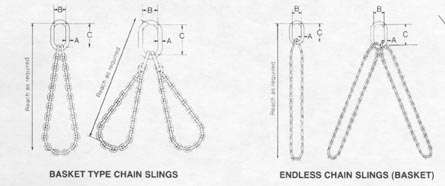

| BASKET
TYPE CHAIN SLINGS |
|
Single
and Double Basket Chain Slings |
Chain
Size
Inches |
Working
Load
Limits
@ 60 Degrees
Lbs.
Single |
Working
Load
Limits
@ 60 Degrees
Lbs.
Double |
Oblong
Master
Link
Single
Basket
No. |
Oblong
Master
Link
Single
Basket
Dia
Material
Inches
"A" |
Oblong
Master
Link
Single
Basket
Inside
Width
Inches
"B" |
Oblong
Master
Link
Single
Basket
Inside
Length
Inches
"C" |
Oblong
Master
Link
Double Basket
Oblong
Master
Link
Sub-Assembly
No. |
Oblong
Master
Link
Double
Basket
Dia
Material
Inches
"A" |
Oblong
Master
Link
Double
Basket
Inside
Width
Inches
"B" |
Oblong
Master
Link
Double
Basket
Inside
Length
Inches
"C" |
| 9/32 |
6,100 |
9,100 |
HA 50 |
1/2 |
2-1/2 |
5 |
HA 75-SA |
3/4 |
2-3/4 |
5-1/2 |
| 3/8 |
12,300 |
18,400 |
HA 75 |
3/4 |
2-3/4 |
5-1/2 |
HA 100-SA |
1 |
3-1/2 |
7 |
| 1/2 |
20,800 |
31,200 |
HA 100 |
1 |
3-1/2 |
7 |
HA 125-SA |
1-1/4 |
4-3/8 |
8-3/4 |
| 5/8 |
31,300 |
47,000 |
HA 125 |
1-1/4 |
4-3/8 |
8-3/4 |
HA 150-SA |
1-1/2 |
5-1/4 |
10-1/2 |
| 3/4 |
47,000 |
73,500 |
HA 150 |
1-1/2 |
5-1/4 |
10-1/2 |
HA 175-SA |
1-3/4 |
6 |
12 |
| 7/8 |
59,200 |
88,900 |
HA 175 |
1-3/4 |
6 |
12 |
HA 200-SA |
2 |
7 |
14 |
| 1 |
82,600 |
123,900 |
HA 200 |
2 |
7 |
14 |
HA 225-SA |
2-1/4 |
8 |
16 |
| 1-1/4 |
125,200 |
187,800 |
HA 225 |
2-1/4 |
8 |
16 |
HA 275-SA |
2-3/4 |
9 |
16 |
| ENDLESS
CHAIN SLINGS (BASKET) |
|
Single
and Double Endless Chain Slings (Basket) |
Chain
Size
Inches |
Working
Load
Limits
@ 60 Degrees
Lbs.
Single |
Working
Load
Limits
@ 60 Degrees
Lbs.
Double |
Oblong
Master
Link
Single
Endless
No. |
Oblong
Master
Link
Single
Endless
Dia
Material
Inches
"A" |
Oblong
Master
Link
Single
Endless
Inside
Width
Inches
"B" |
Oblong
Master
Link
Single
Endless
Inside
Length
Inches
"C" |
Oblong
Master
Link
Double Endless
Oblong
Master
Link
No. |
Oblong
Master
Link
Double
Endless
Dia
Material
Inches
"A" |
Oblong
Master
Link
Double
Endless
Inside
Width
Inches
"B" |
Oblong
Master
Link
Double
Endless
Inside
Length
Inches
"C" |
| 9/32 |
6100 |
9100 |
HA 50 |
1/2 |
2-1/2 |
5 |
HA 75 |
3/4 |
2-3/4 |
5-1/2 |
| 3/8 |
12,300 |
18,400 |
HA 75 |
3/4 |
2-3/4 |
5-1/2 |
HA 100 |
1 |
3-1/2 |
7 |
| 1/2 |
20,800 |
31,200 |
HA 100 |
1 |
3-1/2 |
7 |
HA 125 |
1-1/4 |
4-3/8 |
8-3/4 |
| 5/8 |
31,300 |
47,000 |
HA 125 |
1-1/4 |
4-3/8 |
8-3/4 |
HA 150 |
1-1/2 |
5-1/4 |
10-1/2 |
| 3/4 |
49,000 |
73,500 |
HA 150 |
1-1/2 |
5-1/4 |
10-1/2 |
HA 175 |
1-3/4 |
6 |
12 |
| 7/8 |
59,200 |
88,900 |
HA 175 |
1-3/4 |
6 |
12 |
HA 200 |
2 |
7 |
14 |
| *
Caution: This working load limit should not be exceeded. |
