ADJUSTABLE
TYPE CHAIN SLINGS, WITH HOOKS.
| Slings
shown here are the most popular of the adjustable type slings.
However, Southwest Wire Rope's engineering staff can design whatever
configuration is required to fit individual needs. |
 |

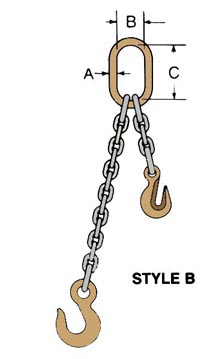

| ADJUSTABLE
SINGLE CHAIN SLING |
Chain
Size
(Inches) |
Working
Load
Limit @
90 Degrees
in
Lbs.* |
Oblong
Master
Link
No. |
Master
Link
Size
(Inches)
Dia.
Material
"A" |
Master
Link
Size
(Inches)
Inside
Width
"B" |
Master
Link
Size
(Inches)
Inside
Length
"C" |
Hooks
Sling
No. |
Hooks
Grab
No. |
| 9/32 |
3,500 |
HA 50 |
1/2 |
2-1/2 |
5 |
HA 220 |
HA 9/32 |
| 3/8 |
7,100 |
HA 75 |
3/4 |
2-3/4 |
5-1/2 |
HA 250 |
HA 3/8 |
| 1/2 |
12,000 |
HA 100 |
1 |
3-1/2 |
7 |
HA 280 |
HA 1/2 |
| 5/8 |
18,100 |
HA 100 |
1 |
3-1/2 |
7 |
HA 290 |
HA 5/8 |
| 3/4 |
28,300 |
HA 125 |
1-1/4 |
4-3/8 |
8-3/4 |
HA 300 |
HA 3/4 |
| 7/8 |
34,200 |
HA 150 |
1-1/2 |
5-1/4 |
10-1/2 |
HA 320 |
HA 7/8 |
| 1 |
47,700 |
HA 175 |
1-3/4 |
6 |
12 |
HA 330 |
HA 1 |
| 1-1/4 |
72,300 |
HA 200 |
2 |
7 |
14 |
HA 350 |
HA 1-1/4 |
Safety
Note: The
master link on this type of sling is designed for single use
only. If used as a basket sling, do not load beyond the single
capacity.
|
 |

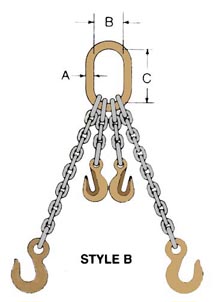

| ADJUSTABLE
DOUBLE CHAIN SLING |
Chain
Size
(Inches) |
Working
Load
Limit @
60 Degrees
in
Lbs.* |
Oblong
Master
Link
No. |
Master
Link
Size
(Inches)
Dia.
Material
"A" |
Master
Link
Size
(Inches)
Inside
Width
"B" |
Master
Link
Size
(Inches)
Inside
Length
"C" |
Hooks
Sling
No. |
Hooks
Grab
No. |
| 9/32 |
6,100 |
HA 50 |
1/2 |
2-1/2 |
5 |
HA 220 |
HA 9/32 |
| 3/8 |
12,300 |
HA 75 |
3/4 |
2-3/4 |
5-1/2 |
HA 250 |
HA 3/8 |
| 1/2 |
20,800 |
HA 100 |
1 |
3-1/2 |
7 |
HA 280 |
HA 1/2 |
| 5/8 |
31,300 |
HA 125 |
1-1/4 |
4-3/8 |
8-3/4 |
HA 290 |
HA 5/8 |
| 3/4 |
49,000 |
HA 150 |
1-1/2 |
5-1/4 |
10-1/2 |
HA 300 |
HA 3/4 |
| 7/8 |
59,200 |
HA 175 |
1-3/4 |
6 |
12 |
HA 320 |
HA 7/8 |
| 1 |
82,600 |
HA 200 |
2 |
7 |
14 |
HA 330 |
HA 1 |
| 1-1/4 |
125,200 |
HA 225 |
2-1/4 |
8 |
16 |
HA 350 |
HA 1-1/4 |
Safety
Note: The
master link on this type of sling is designed for double sling
only. If used as a basket sling, do not load beyond the single
capacity.
|
| *
Caution: This working load limit should not be exceeded. |
