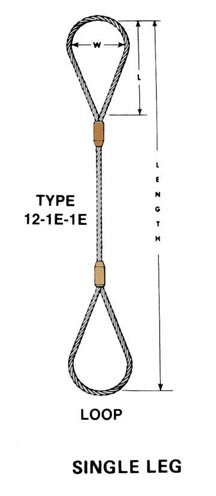

Southwest Wire Rope Cable-Laid slings are specialized slings, designed specifically for applications that require extreme flexibility and resistance to kinking. Type 12 is a single-leg construction for use singly or in pairs. Where cutting or abrasion are factors, however, the All-Purpose Type 11 sling is recommended.

Diameter of Rope Inches	Min Length (SL) of Sling ft-in.	Inside Loop Dimensions W inches	Inside Loop Dimensions L inches	Tons ** Choker Hitch	Tons Single Part Vertical	Tons Basket Hitch* 60 Degrees	Tons Basket Hitch* 45 Degrees	Tons Basket Hitch* 30 Degrees
3/8	2	3	6	0.74	1.1	1.9	1.5	1.1
1/2	2-6	4	8	1.3	1.9	3.2	2.6	1.8
5/8	3	5	10	2.0	2.9	5.0	4.1	2.9
3/4	3-6	6	12	2.8	4.1	7.0	5.8	4.1
7/8	4	7	14	3.7	5.4	9.4	7.6	5.4
1	4-6	8	16	4.7	6.9	12	9.7	6.9
1-1/8	5	9	18	5.8	8.3	14	12	8.3
1-1/4	5-6	10	20	7.0	9.9	17	14	9.9

	Loop	Thimble	Alloy Hook	Shackle with thimble	Half Thimble
	Inside	Inside			Inside Loop

Rope Diam. Inches

Width In.

Length In.

Width In.

Length In.

Size Tons

Size Inches

Width Inches

Length Inches

7 x 7 x 7

3/8	3	6	1-1/8	2-1/8	1-1/2	7/16	2	4
1/4	4	8	1-1/2	2-3/4	3	1/2	2-1/4	5
5/8	5	10	1-3/4	3-1/4	4-1/2	5/8	3-1/4	5-1/2

7 x 7 x 19

3/4	6	12	2	3-3/4	7	3/4	3-1/4	7
1	8	16	2-1/2	4-1/2	11	1	4-1/2	9
1-1/8	9	18	2-7/8	5-1/8	11	1-1/8	4-5/8	10-1/2
1-1/4	10	20	3-1/2	6-1/2	15	1-3/8	6	12

* Rated capacities of basket hitches are based on a minimum diameter of curvature at the point of laod contact of 10 times the rope diameter.

** Rated capacities for choker hitches apply when the angle of choke is greater than 135 degrees.

Bright 7 x 6 x 19 with IWRC Class Rope may be used on larger sizes.
