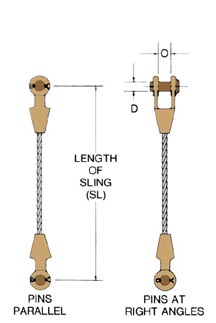

TYPE 11-30S-30S OPEN SOCKETS

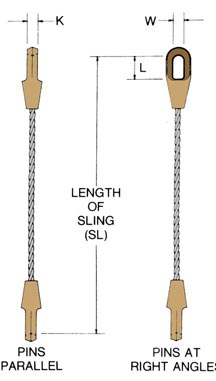

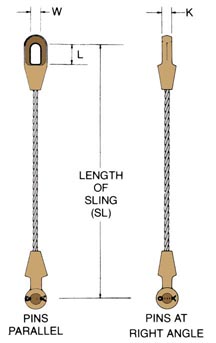

TYPE 11-3CS-30S OPEN AND CLOSED SOCKETS TYPE 11-3CS-3CS CLOSED SOCKETS

Diameter of Wire Rope Inches	Min Length (SL) of Sling Ft. In.	Rated in Tons EIPS-IWRC Two Slings When Used 60 Degrees	Rated in Tons EIPS-IWRC Two Slings When Used 45 Degrees	Rated in Tons EIPS-IWRC Two Slings When Used 30 Degrees	Important Dimensions Open Socket O Inches	Important Dimensions Open Socket D Inches	Important Dimensions Closed Socket W Inches	Important Dimensions Closed Socket L Inches	Important Dimensions Closed Socket K Inches
1/4	1-0	1.2	.96	.68	11/16	11/16	13/16	1-3/4	1/2
5/16	1-0	1.9	1.60	1.10	13/16	13/16	15/16	2	11/16
3/8	1-0	2.6	2.10	1.50	13/16	13/16	15/16	2	11/16
7/16	1-2	3.5	2.80	2.00	1	1	1-1/8	2-1/4	7/8
1/2	1-3	4.6	3.70	2.60	1	1	1-1/8	2-1/4	7/8
9/16	1-5	5.9	4.80	3.40	1-1/4	1-3/16	1-3/8	2-1/2	1
5/8	1-6	7.1	5.90	4.10	1-1/4	1-3/16	1-3/8	2-1/2	1
3/4	1-9	10.0	8.30	5.90	1-1/2	1-3/8	1-5/8	3	1-1/4
7/8	2-0	14.0	11.0	7.90	1-3/4	1-5/8	1-7/8	3-1/2	1-1/2
1	2-6	17.0	15.00	10.00	2	2	2-1/4	4	1-3/4
1-1/8	2-9	22.0	18.00	13.00	2-1/4	2-1/4	2-1/2	4-1/2	2
1-1/4	3-0	28.0	23.00	16.00	2-1/2	2-1/2	2-3/4	5	2-1/4
1-3/8	3-0	33.0	28.00	20.00	2-1/2	2-1/2	2-3/4	5	2-1/4
1-1/2	3-3	39.0	32.00	23.00	3	2-3/4	3-1/8	6	2-1/2
1-5/8	3-9	46.0	37.00	26.00	3	3	3-1/4	6-1/2	2-3/4
1-3/4	4-3	53.0	44.00	31.00	3-1/2	3-1/2	3-17/32	7-9/16	3
2	4-9	68.0	56.00	39.00	4	3-3/4	3-25/32	8-9/16	3-1/4
2-1/4	5-0	85.0	70.00	49.00	4-1/2	4-1/4	4-9/32	9-1/2	3-5/8
2-1/2	5-9	104.0	85.00	60.00	5	4-3/4	5-1/2	10-5/8	4
2-3/4	6-5	125.0	102.00	72.00	5-1/4	5	6-1/2	11-1/4	4-7/8
3	6-10	147.0	120.00	85.00	5-3/4	5-1/4	6-3/4	11-3/4	5-1/4
3-1/4	7-7	170.0	139.00	98.00	6-1/4	5-1/2	7-1/4	12-1/4	5-3/4
3-1/2	8-2	196.0	160.00	113.00	6-3/4	6	7-1/4	13	6-1/4
3-3/4	8-8	222.0	181.00	128.00	7-1/2	7	8-1/2	14	7
4	9-1	248.0	202.00	143.00	7-1/2	7	8-1/2	14	7

Sockets available up through 6" diameter wire rope upon request.
