Type 11 Slings
Slings with Single-Rope Legs and Open and/or Closed Swaged Sockets*
TYPE 11-10S-10S
OPEN SWAGED SOCKETS
TYPE 11-10S-1CS
OPEN AND CLOSED
SWAGED SOCKETS

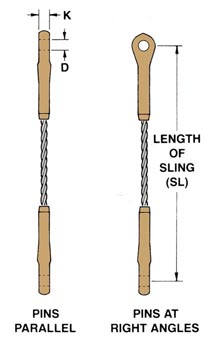

TYPE 11-1CS-1CS
CLOSED SWAGED
SOCKETS
Diameter of
Wire Rope
Inches
Min Length
(SL) of Sling
Ft. In.
Rated in Tons
EIPS-IWRC
Two Slings
When Used
60
Degrees
Rated in Tons
EIPS-IWRC
Two Slings
When Used
45
Degrees
Rated in Tons
EIPS-IWRC
Two Slings
When Used
30
Degrees
Important
Dimensions
Open Swage Socket
O
Inches
Important
Dimensions
Open Swage Socket
D
Inches
Important
Dimensions
Open Swage Socket
E
Inches
Important
Dimensions
Closed Swage Socket
K
Inches
Important
Dimensions
Closed Swage Socket
D
Inches
1/4
0-11
1.1
.91
.65
11/16
11/16
1-5/32
1/2
3/4
5/16
1-1
1.7
1.40
1.0
13/16
13/16
1-11/32
11/16
7/8
3/8
1-3
2.5
2.0
1.4
13/16
13/16
1-11/32
11/16
7/8
7/16
1-6
3.4
2.7
1.9
1
1
1-1/2
7/8
1-1/16
1/2
1-8
4.4
3.6
2.5
1
1
1-1/2
7/8
1-1/16
9/16
1-10
5.5
4.5
3.2
1-1/4
1-3/16
1-21/32
1-1/8
1-1/4
5/8
2-0
6.8
5.5
3.9
1-1/4
1-3/16
1-21/32
1-1/8
1-1/4
3/4
2-5
9.7
7.9
5.6
1-1/2
1-3/8
2-1/16
1-5/16
1-7/16
7/8
2-10
13.0
11.0
7.6
1-3/4
1-5/8
2-7/8
1-1/2
1-11/16
1
3-2
17.0
14.0
9.8
2
2
2-3/4
1-3/4
2-1/16
1-1/8
3-7
21.0
17.0
12.0
2-1/4
2-1/4
3-1/8
2
2-5/16
1-1/4
4-0
26.0
21.0
15.0
2-1/2
2-1/2
3-1/2
2-1/4
2-9/16
1-3/8
4-5
31.0
25.0
18.0
2-1/2
2-1/2
4
2-1/4
2-9/16
1-1/2
4-9
37.0
30.0
21.0
3
2-3/4
4-3/8
2-1/2
2-13/16
1-5/8
5-1
42.0
35.0
24.0
3-1/2
3-1/2
5
3
3-9/16
1-3/4
5-5
49.0
46.0
28.0
3-1/2
3-1/2
5
3
3-9/16
2
6-4
63.0
52.0
37.0
4
3-3/4
6-1/8
3-1/4
3-13/16
2-1/4
7-2
77.0
63.0
44.0
4-1/4
4-1/4
4-5/8
4
4-5/16
2-1/2
8-0
94.0
77.0
54.0
4-1/4
4-1/4
4-5/8
4
4-5/16
*Interchangeable with zinc sockets.
